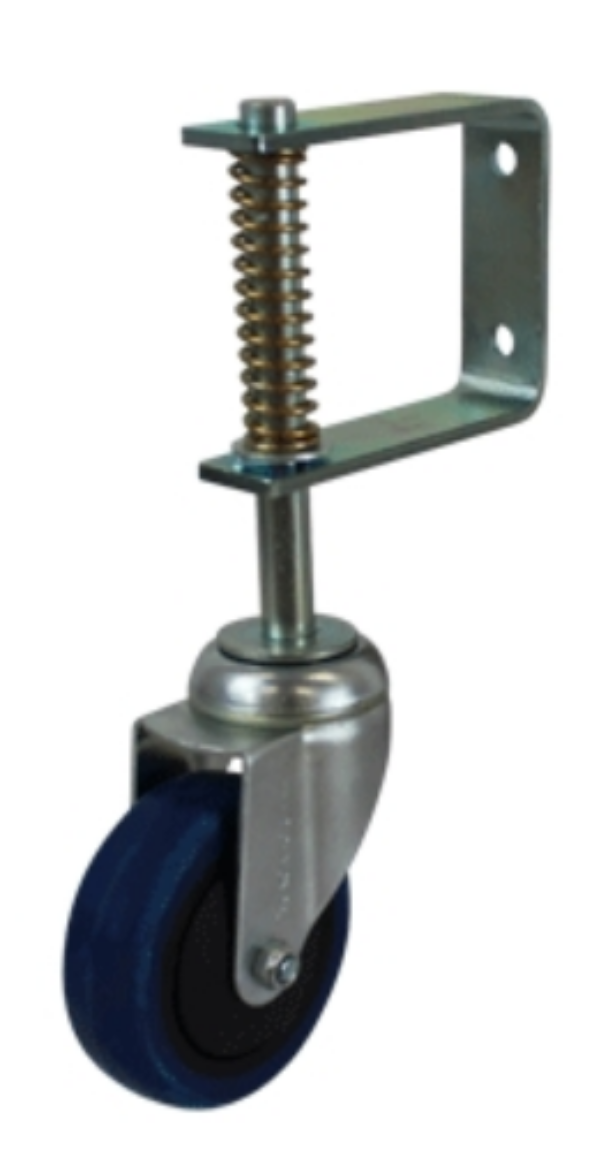

100mm Reb Rubber Wheel 20kg Capacity Spring Loaded Gate Castor (S4022)
Wheel Diameter: 100mm
A = 100mm, B = 285mm, C = 190' Swivel Radius
Castor Frame Type: Swivel
Wheel Width: 30mm
Wheel Type: Rebound Rubber
Wheel Code: RR4473
Wheel Bearing Type: Ball Bearing
Castor Height: 133mm
Swivel Radius: 90mm
Bolt Hole Size: 12mm
Maximum Load Capacity: 20kg
Richmond’s Spring Loaded Gate Castors are designed to make opening and closing of residential gates easier. The spring loaded design provides shock absorption features specifically for use on uneven surfaces. The gate mount is integrated into the frame of the castor for easy fixing to any gate system.
