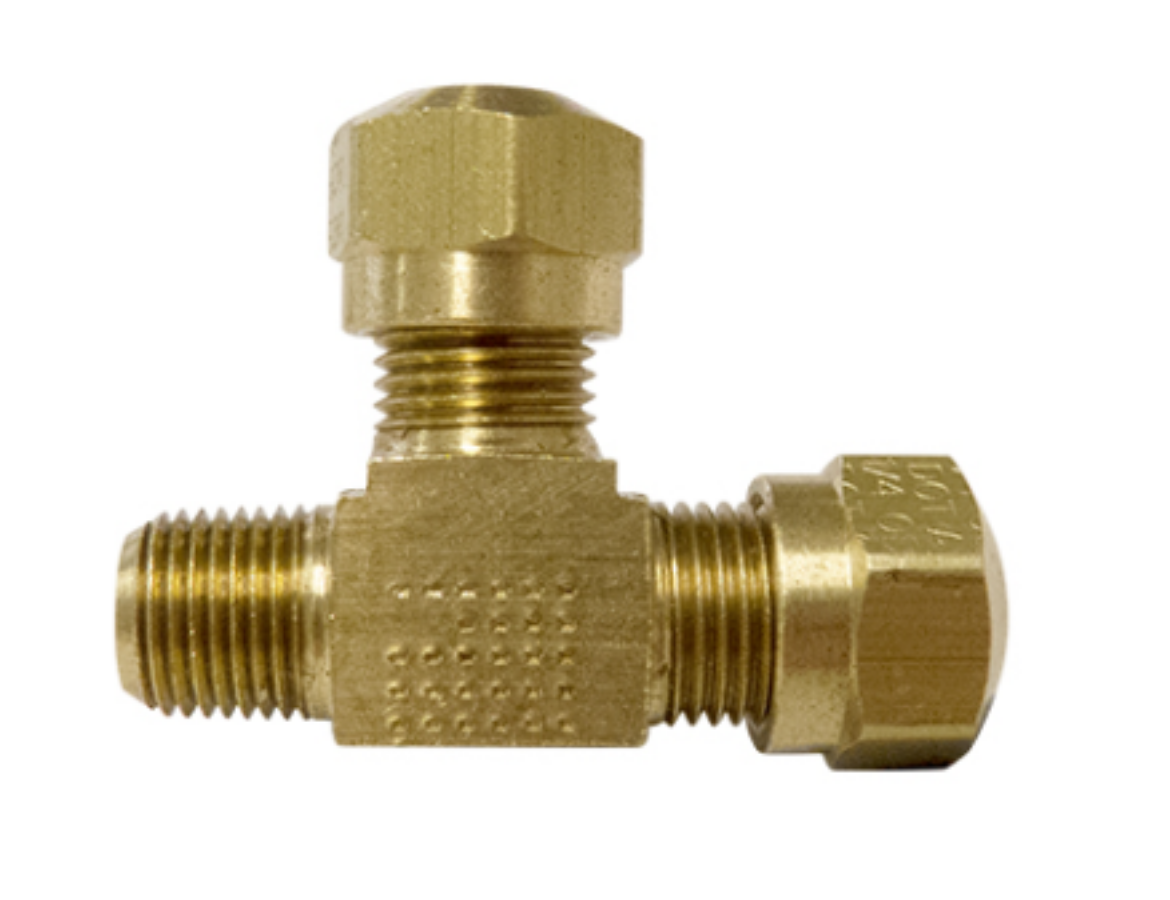

The 1/4x1/8 Male Run Tee with part number 35-1471-04 is a brass fitting commonly used in air brake systems. Here are some key details:
- Material: Brass
- Type: Male Run Tee fitting
- Thread Size: 1/4" NPT (National Pipe Thread) x 1/8" NPT
- Application: Designed for use with nylon air brake tubing
- Temperature Range: -40B0F to +200B0F (-40B0C to +93B0C)
- Max Working Pressure: 150 PSI
- Standards: Meets DOT FMVSS 571.106 and SAE J1131 standards
This fitting is designed to provide a secure and reliable connection in air brake systems
