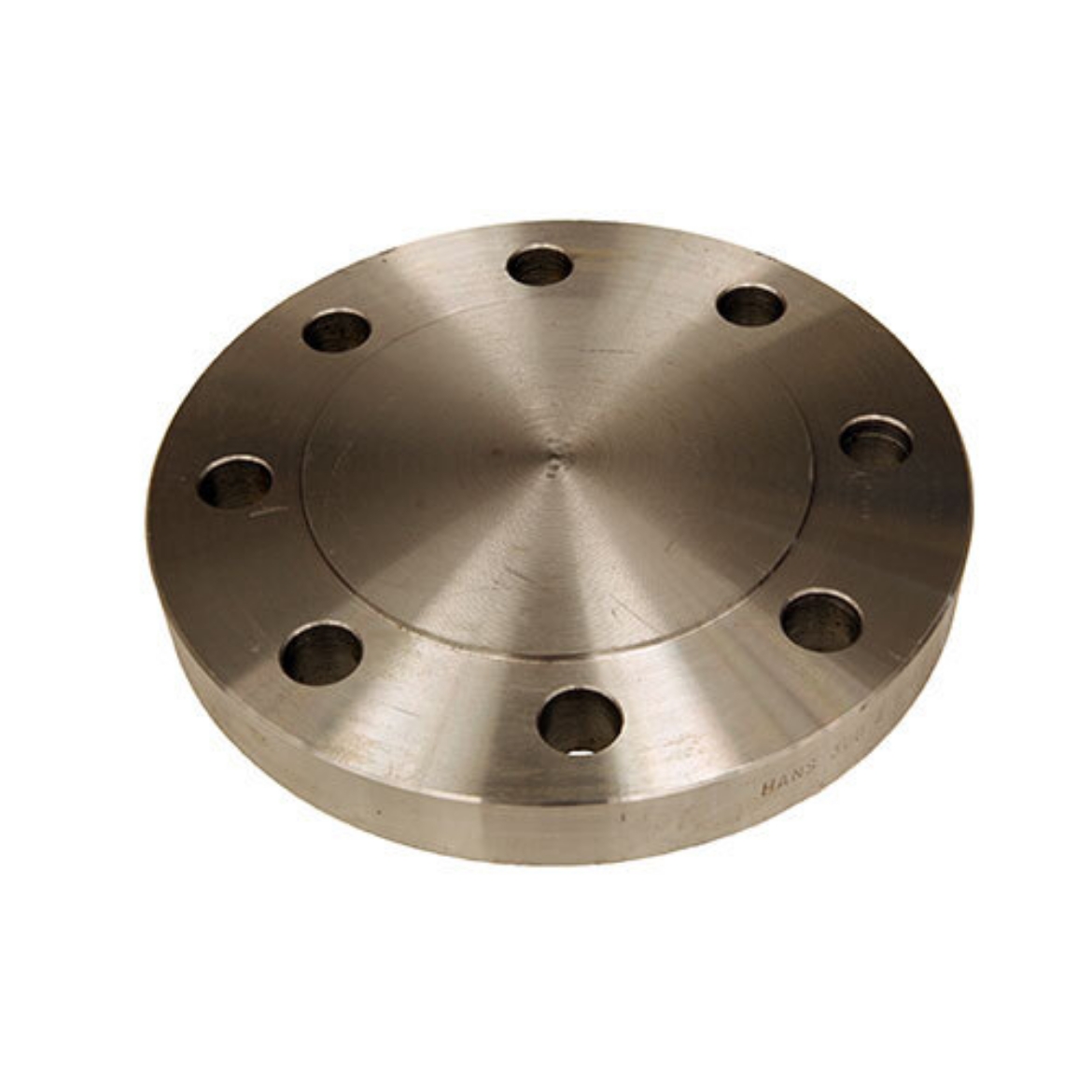

The 2-inch Class 300 ANSI Blind Flange is a type of pipe fitting used to close the end of a pipe system. Here are some key details:
- Type: Blind Flange
- Class: 300
- Material: Carbon Steel (ASTM A/SA-105)
- Dimensions: Conforms to ANSI B16.5 standards
- Nominal Pipe Size: 2 inches
- Outside Diameter: 6.5 inches
- Flange Thickness: 0.88 inches
- Number of Bolt Holes: 8
- Bolt Hole Diameter: 0.75 inches
- Bolt Circle Diameter: 5 inches
- Approximate Weight: 7 lbs
This flange is designed to withstand high pressure and is commonly used in various industrial applications.
