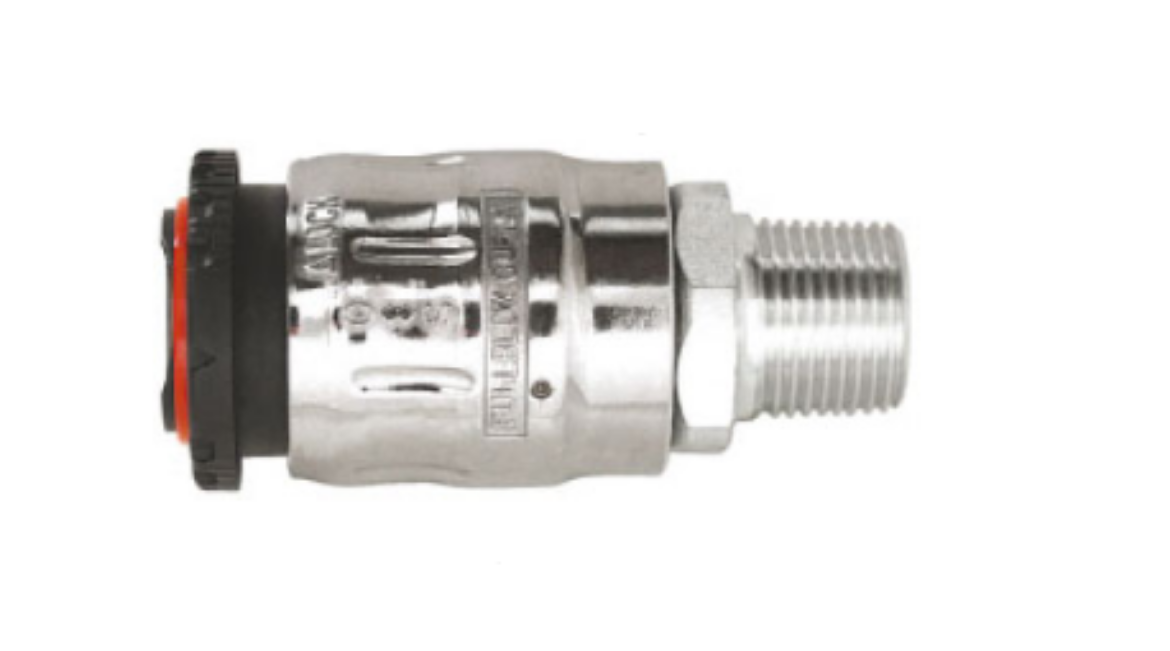

Key Features
• Unique full-open gate-type valve mechanism realizes low pressure loss and high flow rate, which reduces the required source air volume
• New valve design for low pressure loss to achieve flow rate increase
• End-face seal is achieved when connected
• Enhanced operability with low connection resistance
• End-face seal design is superior to external seal with an O-ring due to no seal damage caused by exhaustion lubrication
• Available only with steel body. Not suitable for water and oil
• Also available with quick connect/disconnect Tube Fitter type
Specifications
Body Material | | Aluminum alloy |
Size | Thread and hose barb | 1/4", 3/8", 1/2" |
| SN type | For ø6.5 mm x ø10 mm, ø8 mm x ø12 mm polyurethane hose |
| | For ø8.5 mm x ø12.5 mm, ø11 mm x ø16 mm polyurethane hose |
