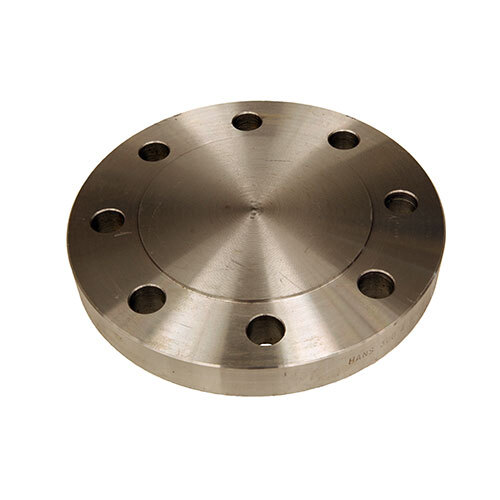

The 6-inch Class 300 ANSI Blind Flange is a type of pipe fitting used to close the end of a pipe system. Here are some key details:
- Type: Blind Flange
- Class: 300
- Material: Carbon Steel (ASTM A/SA-105)
- Dimensions: Conforms to ANSI B16.5 standards
- Nominal Pipe Size: 6 inches
- Outside Diameter: 12.5 inches
- Flange Thickness: 1.44 inches
- Number of Bolt Holes: 12
- Bolt Hole Diameter: 0.88 inches
- Bolt Circle Diameter: 10.62 inches
- Approximate Weight: 39 lbs
This flange is designed to withstand high pressure and is commonly used in various industrial applications.
