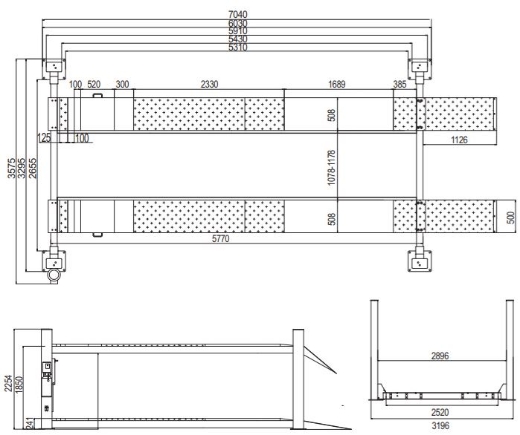

Capacity

6500kg

Lock Release

single point

Power

240v or 3 phase

Column Height

2254mm

Lifting Height

1850mm

Clearance Under Runways

1730mm

Overall Width (excl. motor)

3295mm

Overall Width (incl. motor)

3575mm

Overall Length (incl. ramps)

6430mm

Overall Length (excl. ramps)

7036mm

Platform Width

500mm

Width Between Platforms

1078mm to 1178 (adjustable)

Platform Length

5910mm

Drive Through Clearance

2896mm

Freight Dimensions

L 5400mm W 600mm H 1100mm W 1525KG
