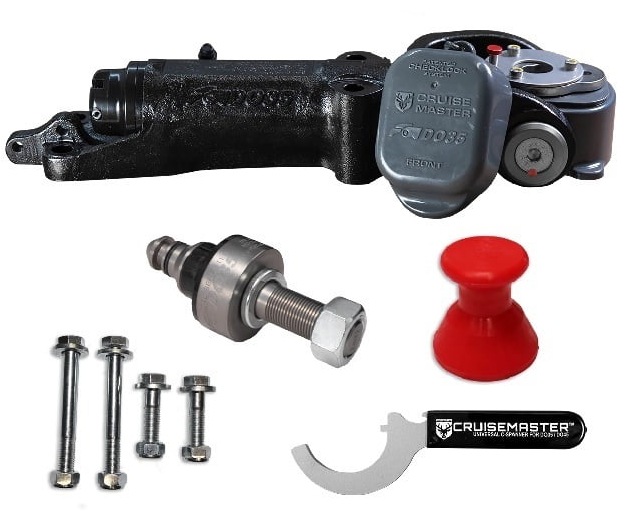

Item Includes:
- DO35 V3Plus (no handbrake).
- Tow pin 1" shaft.
- Tow pin cover.
- Universal C-Spanner.
- Fitment bolts.
- User guide.
The adventure continues with the DO35 V3P, taking you further than other couplings!
V3Plus Exclusive Features:
- Patented "checklock" Gen.2 dust cap & bumper for an easy, secure seal.
- Improved Bumper modling gives the from reflecter strip improved staying power.
- Rear support webbing allows for mounting upside down on the underside of the drawbar.
Standard V3 Features:
- 2 stage ADR compliant locking mechanism.
- Low profile bumper & cap for impressive clearance.
- High articulation for improved handling off-road and on unmaintained roads.
- Available with or without handbrake.
- Suitable for use with most Weight Distribution System's.
- Forged Yoke and rear Nut for added strength.
- Exceeds ADR 62/01 and 62/02 strength requirements.
- One peice light weight cast housing.
- Standard Aus bolt pattern for easy fitment.
- 7/8" shaft to fit most std. tow tongues.
- Improved towing safety.
- Combination of zn-ni and e-coat for superior corrosion protection.
- Greaseable bushes for easy maintenance and noise free towing.
- No tow ball height restrictions.
- R.A.T run tested and proven.
ARTICULATION: | 360 degrees axial, minimum 70 degrees other axes. |
LOCKING: | Fully ADR 62/02 compliant including automatic secondary lock |
BOLT PATTERN: | 4 bolts at 185mm x 54mm |
RATING: | 3.5 Tonne |
ACTION: | Drop-On |
MAINTENANCE: | Fully Greasable |
