Weldclass PLATINUM series direct fit earth clamps are designed for very easy fitting and long life. No cable lug required, just wire the cable directly to the clamp. Robust heavy-duty build for extended service life. One-piece, solid brass cable terminal & jaw assembly for direct current flow from cable to the workpiece, minimising current leakage and issues caused by poor earthing. Commonly used on welders from 150 to 600 amps.

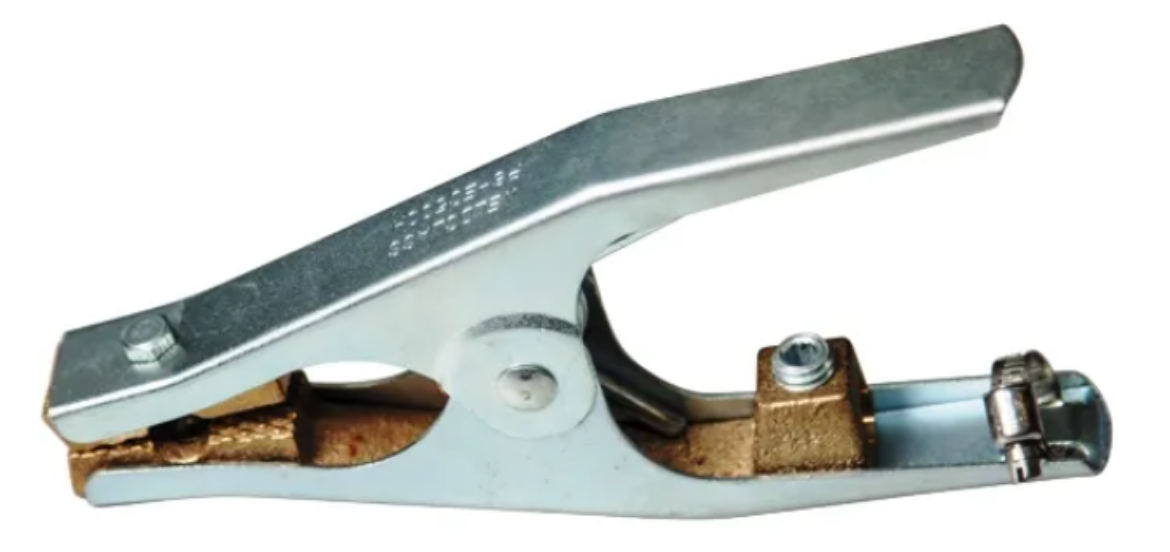

- PLATINUM EC500H H/Duty Direct Fit
Suitable for use on welders up to 500A-600A
Capacity/Rating: 600A @ 35% / 500A @ 60%
Fits cable size up to 70mm2
KEY FEATURES?
> Very fast & easy to Fit: No lug required, cable fits directly to clamp using hex-key supplied with the clamp
> Heavy duty design with solid brass jaws for long service life
> One-piece cable terminal and jaw: Very direct current flow from the cable to the job
> Very firm cable connection, withstands high degree of cable strain
EC500H APPLICATION & SPECS:
> Suitable for use on welders up to 500A-600A
> Cable terminal ID 16mm, fits cable up to 70mm2
> Clamps up to 50mm RHS or pipe
EC200H APPLICATION & SPECS:
> Suitable for use on welders up to 250A-300A
> Cable terminal ID 13mm, fits cable up to 35mm2
> Clamps up to 28mm RHS or pipe
