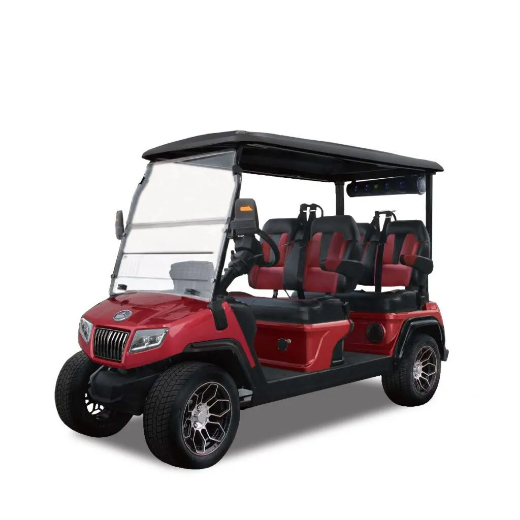

D5-RANGER 4 FEATURING

14x7" Aluminum Wheel 255/55 R14 Radial Tyre

Side Mirrors with Turn Signal Indicators

Fold down windscreen with sliding air vents

Multi-Functional Dashboard

Automotive Style Steering Wheel

Adustable Steering Wheel for Tilt

Luxury Steats with Foldable Armrests

3-Point Seat Belts on all seats

Rear Seat cup Holders, USB Ports and Storage

110ah Lithium Battery

25A Onboard Fast Charger

Golf Bag Holder Dock

Top Mount Sound Bar

Rear Compartment for Storage Trunk/Powered Refrigerator

Automotive Styly Bumper

Front and Rear Fenders

LED Lights

Automotive E-Coat Chassis

Reverse Camera

Automotive E-Coat Chassis
Reverse Camera
9” MULTI-FUNCTIONAL TOUCHSCREEN includes
Touchscreen integrated with speed display
Driving Gear indication
Lights
Odometer
Radio
Music
Bluetooth Connection
Back-upcamera image display.

Rated Passengers (person) - 4
System Voltage (V) - 48
Motor Power (kw) - 6.3
Charging Time (H) - 4-5

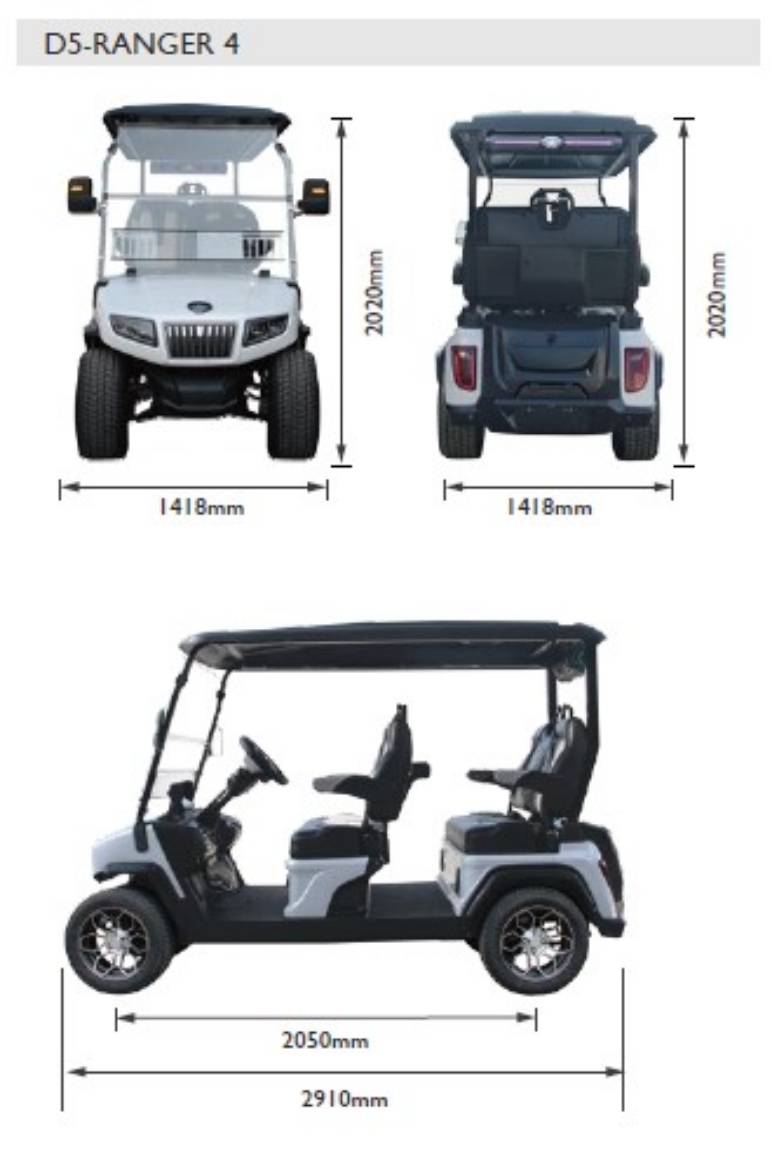

Dimension (mm) - 2910 x 1418 (side mirror) x 2020 H
Wheelbase (mm) - 2050
Wheel Tread (front/rear mm) - 925/995
Driving Range (full load klm) - ≥80
Maximum Speed (kph) - 20/40
Braking Distance (m) - 3.5
Minimum Turning Radius (m) - 3.4
Maximum Gradability (full load) - 25%
Curb Weight (kg) - 480
Maximum Gross Weight (kg) - 785
Minimum Ground Clearance (mm) - 175
Suspension System - Front: Double wishbone independent suspesion Rear: Leaf spring suspension
