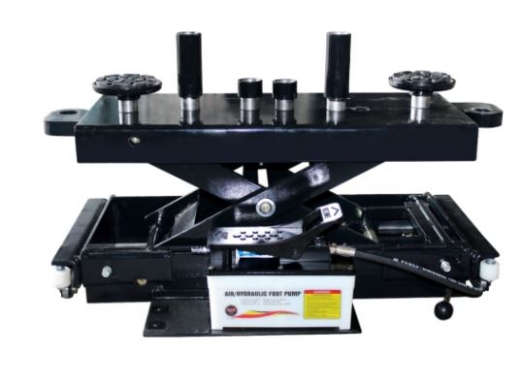

This air operated rolling jack will fit most 4 post hoists with a minimum run way distance apart of 934mm & a maximum distance of 1170mm apart.
The jack rolls on steel rollers and buffers with plastic rollers.
This Rolling Jack With Fit The Following High Lift Hoist Models- YL-6500

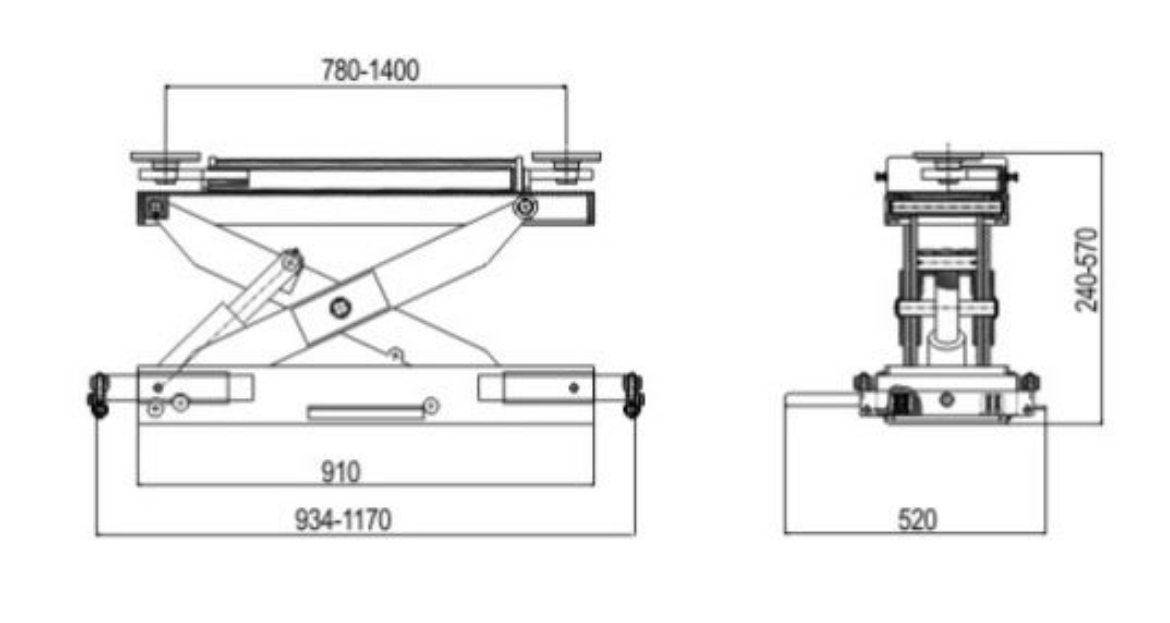

SPECIFICATIONS:
- Capacity- 3000KG
- Minimum Width Between Supports- 934mm
- Width Supports Fully Extended- 1170mm
- Min width arms- 780mm
- Max width arms out- 1400mm
- Min height with lift pad- 240mm
- Lifting Height 570mm without extensions
DIMENSIONS:
L 1030mm W 470mm H 340mm W 164KG
INCLUDED:
- Rolling Jack
- Air Hose & Nitto Air Connect Fitting
- 1 x Air Pump
