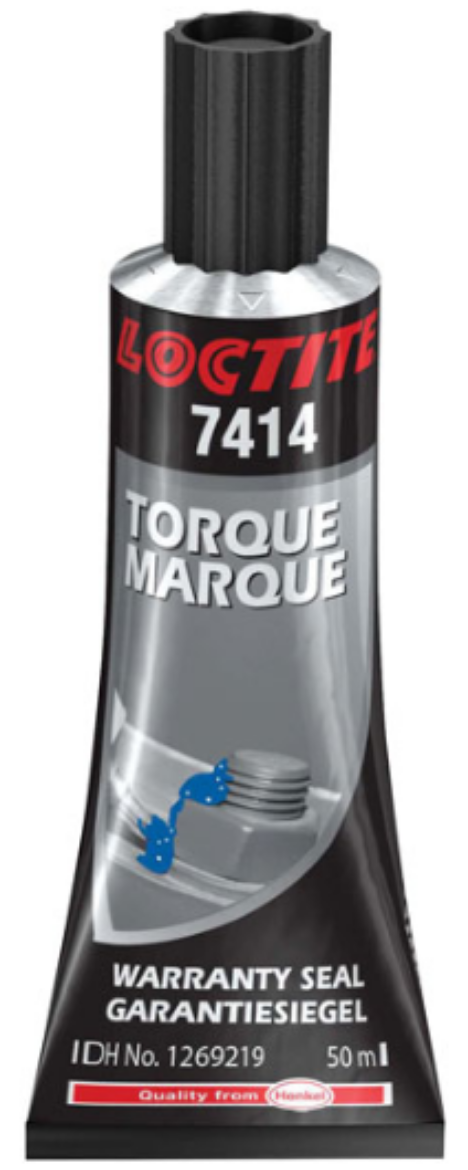

LOCTITE 7414 is a blue high viscous (non-drip) paste which is simply applied across the fastener / component interface to visually detect any movement in the adjustment of parts.

LOCTITE 7414 becomes tack-free in approximately 1-2 minutes and becomes brittle once it cures completely. Any future adjustment or movement will break the seal so service personnel or inspectors can visually detect any changes or tampering with equipment. It has excellent adhesion to metals, including aluminium, magnesium, titanium, stainless steel and copper, and is non-corrosive to these metals.

Directions for Use

• Apply a bead of Loctite 7414 Torque Marque across the fastener / component interface.tube.
• Allow 1 to 2 minutes for the product to surface dry.
• Tamper detection achieved when fully dry (circa 24 hours).detection of any tampering

Your benefits

• For general purpose use
• Provides clear visual indication
• Ideal for warranty protection
• Non-corrosive, can be used outside.

Technology:   Solvent based

Chemical:   Type Solvent

Appearance:   Blue high viscous paste

Odor:   Xylene

Cure:   Not applicable

Application:   Tamper Proofing

LOCTITE SF 7414 is a fast drying paste to be used in production to visually detect any movement in the adjustment of parts.

LOCTITE SF 7414 has been developed for use on compression fittings, studs, nuts, parts and assemblies after they have been set to proper tension or position. Service personnel or inspectors can quickly spot any changes or tampering with equipment. It has excellent adhesion to metals, including aluminum, magnesium, titanium, stainless steel and copper, and is non-corrosive to these metals. This product should be typically applied in temperatures from 15 to 25 °C, higher temperatures will reduce the drying time. Operating temperatures range from -35 to +145 °C.

IDH#  1606544      New Name:  LOCTITE SF 7414 BO50ML AU

Alternate Part#  1269219 / 7414-50ML
