OIL CONTROL GUN W-ELECT METER - CHECK STOCK LEVELS

$1,394.67 Inc. GST

| Be the first to review this product

Availability: On Backorder

Manufacturer: MACNAUGHT

SKU: HG100-75-01

increase decrease

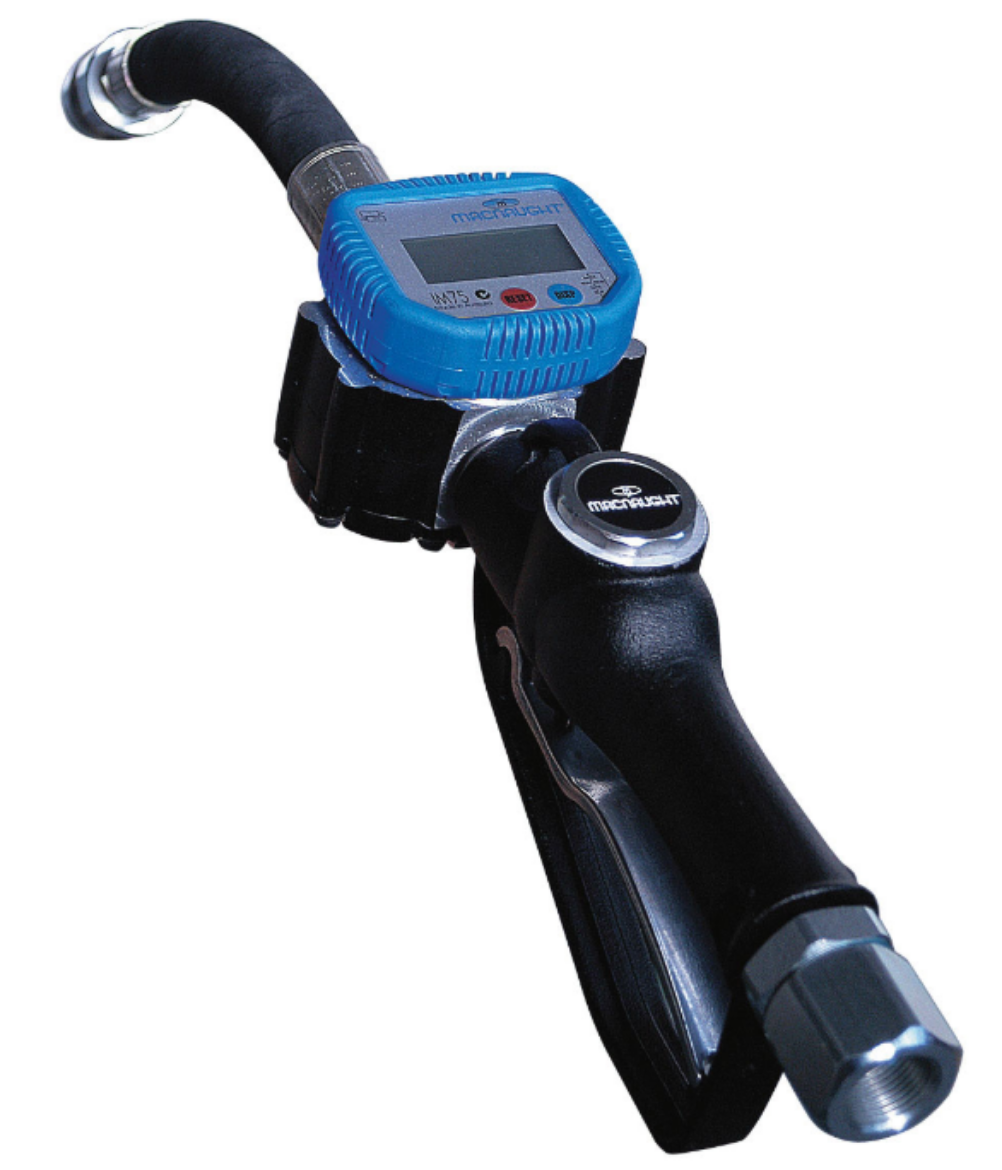

HG100-75 Oil Control Gun with Electronic Meter

A high flow gun designed to shift large volumes of fluid quickly and easily. The gun is also available in zinc, for use in the mining industry.

flexible 350 mm (14”) x 19mm (¾”) ID hose with manual nozzle
latching trigger for ease of use
trigger guard for protection
lockable trigger for anti-theft security
hanging hook
balanced valve assembly allows maximum flow control
IM75 electronic oil meter (HG100-75 model only)
compatible fluids: lubricating oils up to SAE 140, automatic transmission fluid and antifreeze/ anti-boil
wetted components: aluminium/zinc, mild steel, nitrile rubber
flow rate: up to 57 L/min (15 US gal/min)
max. operating pressure: 10 350 kPa (1 500 psi, 103.5 bar)
max operating temp: HG100 - 70ºC (158ºF) HG100-75 - 55ºC (131ºF)
inlet swivel: ¾” BSP or NPT (F)
weight (with fittings): 2.2 kg (5 lbs)

HG100-75 Oil Control Gun with Electronic Meter

A high flow gun designed to shift large volumes of fluid quickly and easily. The gun is also available in zinc, for use in the mining industry.

flexible 350 mm (14”) x 19mm (¾”) ID hose with manual nozzle
latching trigger for ease of use
trigger guard for protection
lockable trigger for anti-theft security
hanging hook
balanced valve assembly allows maximum flow control
IM75 electronic oil meter (HG100-75 model only)
compatible fluids: lubricating oils up to SAE 140, automatic transmission fluid and antifreeze/ anti-boil
wetted components: aluminium/zinc, mild steel, nitrile rubber
flow rate: up to 57 L/min (15 US gal/min)
max. operating pressure: 10 350 kPa (1 500 psi, 103.5 bar)
max operating temp: HG100 - 70ºC (158ºF) HG100-75 - 55ºC (131ºF)
inlet swivel: ¾” BSP or NPT (F)
weight (with fittings): 2.2 kg (5 lbs)
