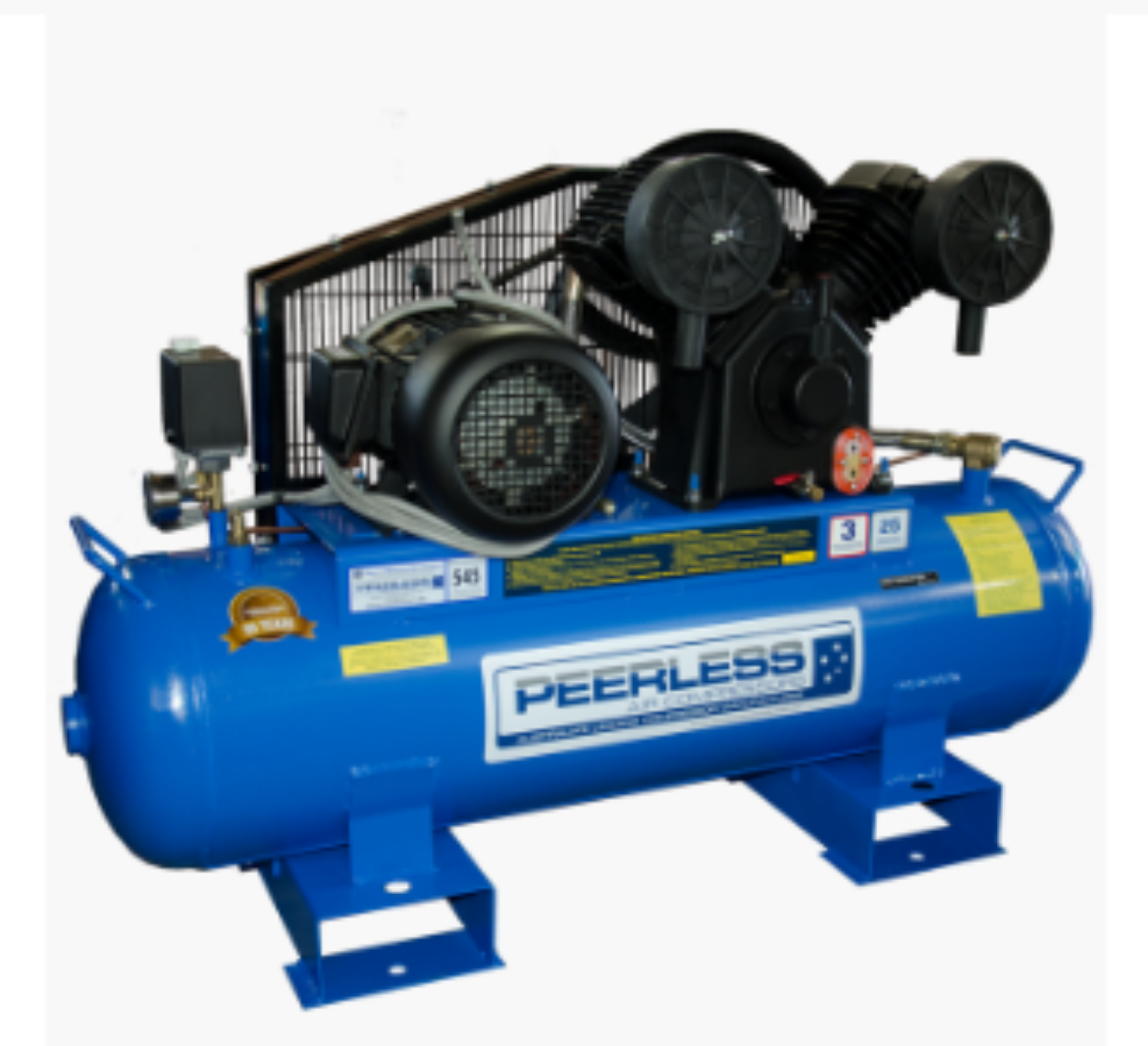

The PV25 is a V cast iron pump single stage air compressor. It gives a massive 545 litres of free air, with a maximum pump pressure of 145PSI.
The pistons are 90mm in diameter, making each stroke count for maximum air performance without having to over speed the pump RPM. When it comes to pump reliability, keeping the pump RPM under 1200RPM means you're not over working it.
This is one of the most popular three phase models on the market and is ideal for a 2-3 man workshop.
Able to run:
Low & high pressure spray guns
Car tyre inflation gun
Truck tyre inflation gun
Stapling / fitting gun
Framing nail / Grease gun
Chalking gun / Riveter gun
Screw driver
1/2” Ratchet gun
1/2” Impact gun
Air duster
4” Angle grinder
6” Orbital sander
Air drill
Engine cleaning gun
Sand blasting gun
Air hammer
Hi torque 1/2” Impact gun
Hi torque 3/4” Impact gun
1/4” Die grinder
Plasma Cutter
Air Gauging Tool
Helpful tip:
When mounting, be sure to get "high density" rubber matting (00011) and then fix to a secure footing as per your states regulations. Remember, when installing allow enough space for the air compressor to breath, air flow is forced over the pump to keep it cool. If mounted hard up against a wall or boxed, it will have trouble getting the correct air circulation.
All pressure vessels can be supplied with a "Manufacturing Data Report" along with "Registered Design" for Work Safe registration.
Peerless Products pressure vessels are all made to AS1210.
Performance of all our belt driven air compressors are to AS4637.
Technical Specifications
- Pump Displacement (CFM): 25 CFM
- Free Air Delivery (LPM): 545 LPM
- Max PSI: 145
- Motor HP: 5.5
- Warranty Pump: 3 Years
- Warranty Motor: 1 Year
- Tank Capacity: 110L
- Pump up time to 100PSI: 1.00-1.05 Min
- Dimensions (mm): 1090L x 450W x 930H
- Weight (kg): 158kg
- Cooling Method: Air Cooled
- Pump Type: V90
- Cylinders: 2
- Pump Head Tension: 30 FT LB 40.67NM
- Oil Capacity: 1.5L
- Pump RPM: 1050
- Outlet Thread: 1/4" BSP & 1/2" BSP
- Electricity: 415V
- Amps Draw: 6.6
