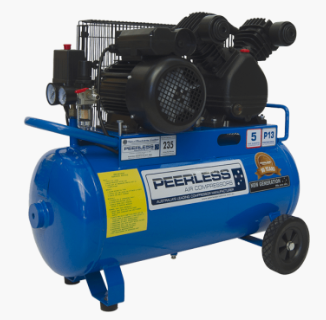

Impressive compact design giving 240 liters per minute of free air delivery. 2 outlets on this machine, one through the water trap filter regulator with auto drain that's fitted and one that's placed between the motor and the pump for direct tank pressure. Includes a Peerless cast iron slow revving pump which has one of the longest warranties on the market - 5 years.
Comes with "Smart Start" intake filters which assists in the protection of the electric motors against low voltage starting, this filter reduces starting AMP's draw by up to 40%.
Able to run:
Low pressure spray gun
Car tyre inflation gun
Stapling Fitting gun
Framing nail gun
Grease gun
Chalking gun
Riveter gun
Screw driver
1/2” Ratchet gun
1/2” Impact gun
Performance of all our belt driven air compressors are to AS4637.
Technical Specifications
- Pump Displacement (CFM): 13 CFM
- Free Air Delivery (LPM): 240 LPM
- Max PSI: 145
- Motor HP: 2.5
- Warranty Pump: 5 Years
- Warranty Motor: 1 Year
- Tank Capacity: 48L
- Pump up time to 100PSI: 1.20-1.25 Min
- Dimensions (mm): 880L x 400W x 670H
- Weight (kg): 62kg
- Cooling Method: Air Cooled
- Pump Type: 2060V
- Cylinders: 2
- Pump Head Tension: 12 FT LB 16.27NM
- Oil Capacity: 500mL
- Pump RPM: 1160
- Outlet Thread: 1/4"BSP
- Electricity: 240V/10A
- Amps Draw: 9
