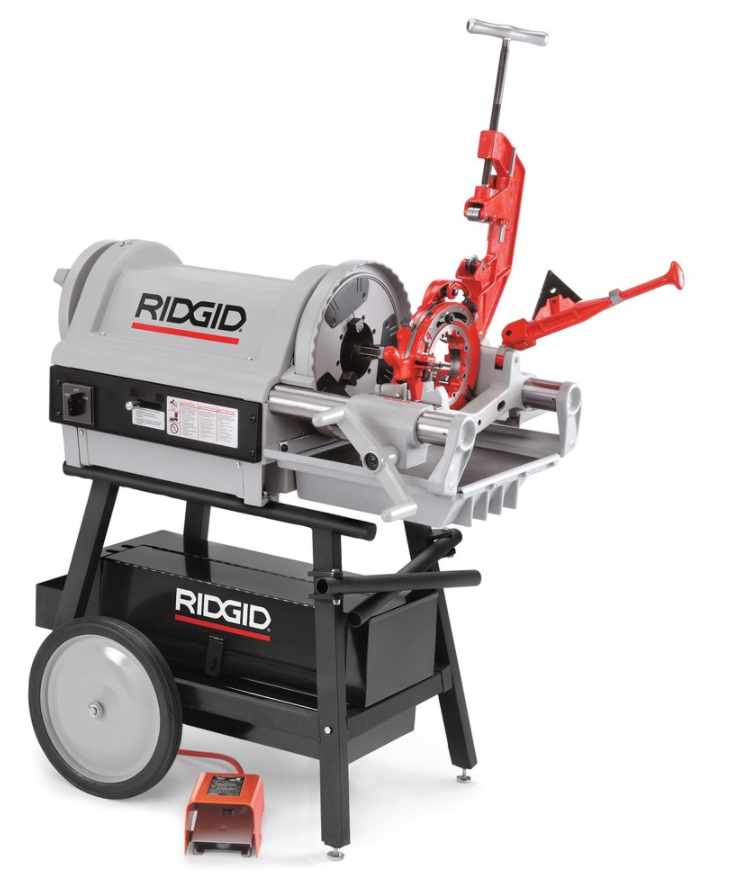

RIDGID 1/2" - 4" BSPT Threading Machine (1224)

The RIDGID Model 1224 is the industry standard 4" Threading Machine. Thousands of satisfied customers around the world give testimony of its dependability

Features:

• Speed, threads 1 /4" – 2" pipe at 36 RPM and 21 /2" – 4" at 12 RPM
• Versatility, threads black, galvanized and plastic coated pipe, stainless steel, IMC, heavy-wall conduit, and rod up to RC 30
• Quiet operation, an induction motor insures sound levels well within the limits set by OSHA
• Low Voltage Operation: special start/run capacitors allow operation in less than ideal conditions

Specs:

• Motor: 1 /2 HP, Single phase, Induction type
  • 60 Hz or 50Hz
• Motor Control: Heavy duty rotary FOR/OFF/REV with integral foot switch
• Spindle Speed: 36-12 RPM
• Chuck: Hammer-type
• Gear Box: 2 Speed, 3:1 Ratio
• Oiling Pump: Self-priming, gerotor-type, automatic-reversing, constant-flow
• Oiling: Through die head
• Capacity:
  • Pipe: 1/4" - 4" (6mm-100mm)
  • Bolt: 1/4" - 2" (6mm-50mm)
• Weight: 231kg
