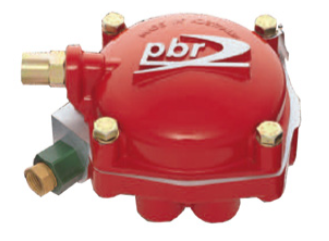

RELAY VALVE - CA400
The PBR CA400 P.A.R.C (Parking and Air Reservoir Control) valve provides ameans of admitting and releasing air to and from the spring brake chambers.The CA400 P.A.R.C valve will service multiples of spring brake chambers, eg.tri-axles, quads etc. The valve is reservoir mounted and controlled by the supply line running from the prime mover. All air delivered to and releasedfrom the spring brakes passes through the P.A.R.C valve with only a small amount of supply line air being exhausted from a valve mounted on the primemover.
- Anti-compound function prevents possibility of full emergency and service brake application simultaneously
- Ideally suited for single and multi-axle configurations
- Easy overhaul
- ADR38/02 compliant
- Fully interchangeable with CA48
- Colour Coded for valve identification and maintanance simplicity
- Supply Port: 1/4" NPT
- Delivery Port: 3/8" NPT
- Ports: 4
- Tank Mount: 3/4" NPT
Cross References: CA400 WCA400 AB8472 CA48.
