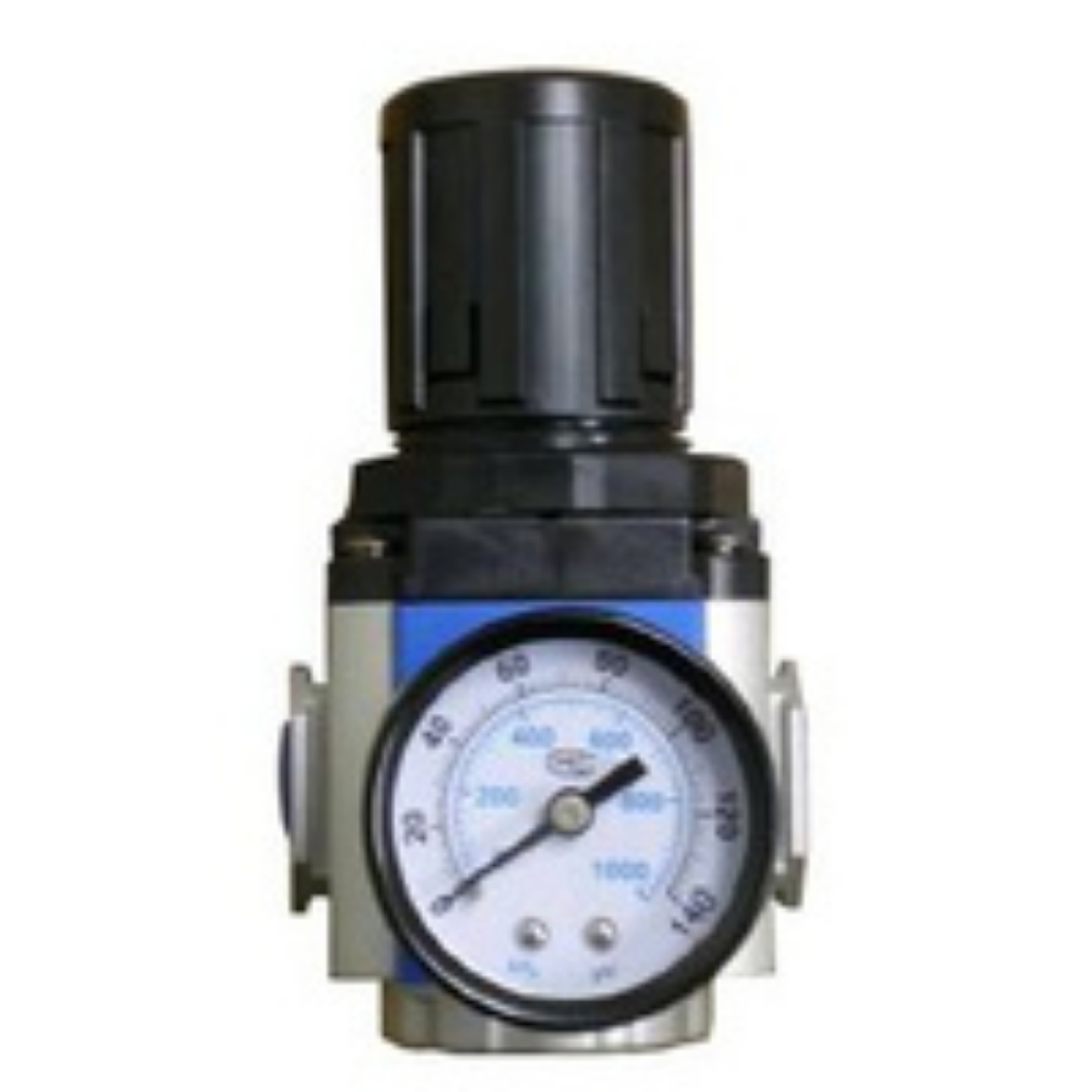

The 27-IR300-03 300 Series 3/8 BSP Regulator is designed for precise control of air pressure in various industrial applications. Here are the key details:
- Port Size: 3/8" BSP
- Regulating Range: Typically around 0.5 to 8.5 kgf/cm² (7 to 125 PSI)
- Maximum Operating Pressure: 150 PSI (10.3 bar)
- Operating Temperature: 5 to 60°C (40 to 140°F)
- Body Material: Die-cast aluminum for durability
- Filtration: 25 μm to ensure clean air supply
- Gauge Port Size: 1/8" BSP
- Flow Capacity: Approximately 2500 LPM (88 SCFM)
- Seals: NBR (Nitrile Butadiene Rubber) for reliable sealing
This regulator is ideal for maintaining consistent air pressure in compressed air systems, ensuring optimal performance and longevity
