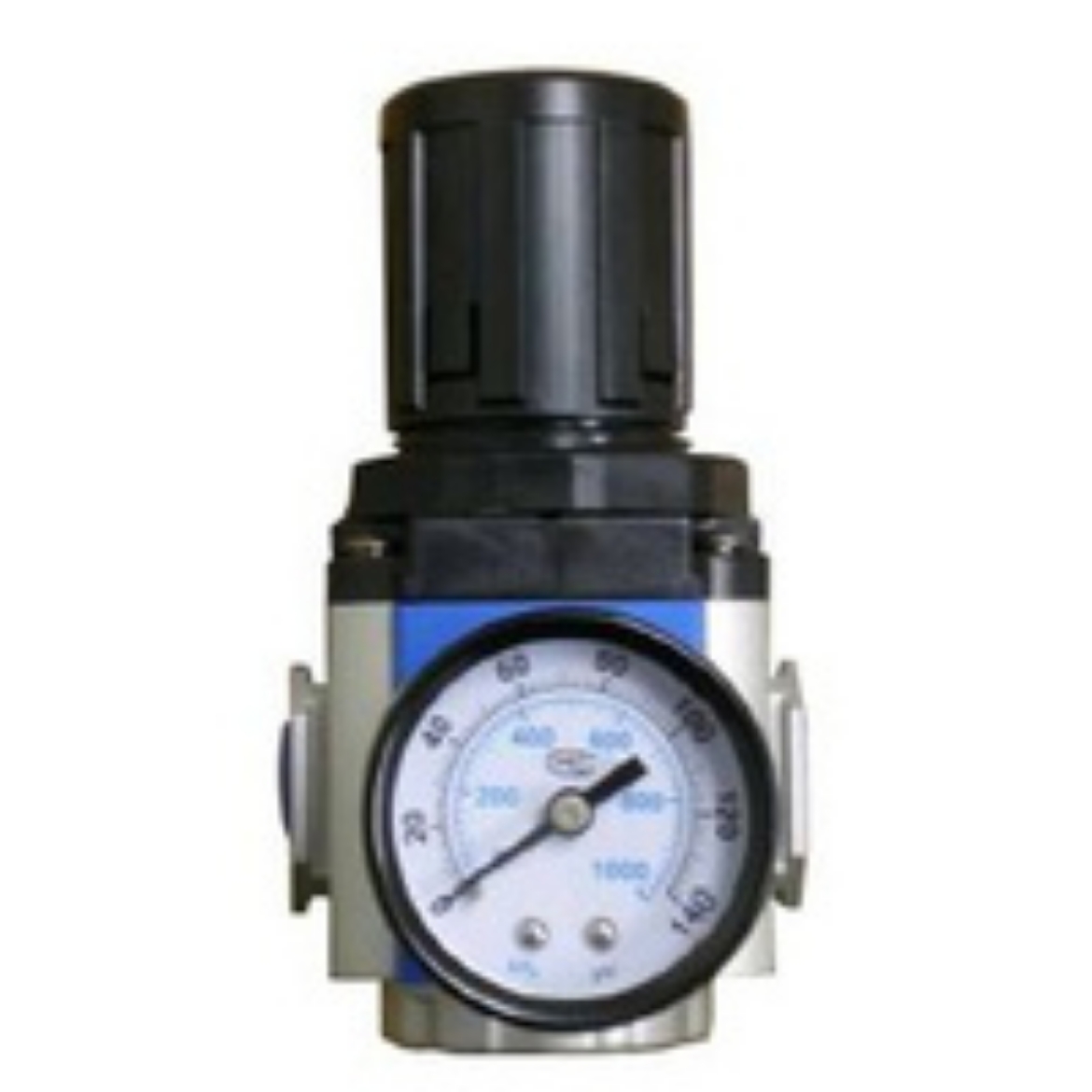

3000 Series 1/4 BSP Regulator

$110.59 Inc. GST

PRICE BREAKS - The more you buy, the more you save

Quantity

Price

$105.06

| Be the first to review this product

Availability: On Backorder

Manufacturer: IFS

SKU: 27-AR3000-02

increase decrease

Overview
Contact Us

The 27-AR3000-02 3000 Series 1/4 BSP Regulator is a versatile pressure regulator designed for various air preparation applications. Here are some key details:

Port Size: 1/4" BSP
Regulating Range: 7 - 125 PSI (0.5 - 8.5 kgf/cm²)
Maximum Operating Pressure: 150 PSI (9.9 kgf/cm²)
Operating Temperature: 40 - 140°F (5 - 60°C)
Body Material: Die-cast aluminum
Filtration: 25 μm for optimal system performance
Gauge Port Size: 1/8" BSP
Flow Capacity: 88 SCFM (2500 LPM)
Seals: NBR (Nitrile Butadiene Rubber)

This regulator is suitable for controlling air pressure in compressed air systems, ensuring consistent output pressure despite variations in input pressure and downstream flow requirements

The 27-AR3000-02 3000 Series 1/4 BSP Regulator is a versatile pressure regulator designed for various air preparation applications. Here are some key details:

Port Size: 1/4" BSP
Regulating Range: 7 - 125 PSI (0.5 - 8.5 kgf/cm²)
Maximum Operating Pressure: 150 PSI (9.9 kgf/cm²)
Operating Temperature: 40 - 140°F (5 - 60°C)
Body Material: Die-cast aluminum
Filtration: 25 μm for optimal system performance
Gauge Port Size: 1/8" BSP
Flow Capacity: 88 SCFM (2500 LPM)
Seals: NBR (Nitrile Butadiene Rubber)

This regulator is suitable for controlling air pressure in compressed air systems, ensuring consistent output pressure despite variations in input pressure and downstream flow requirements
