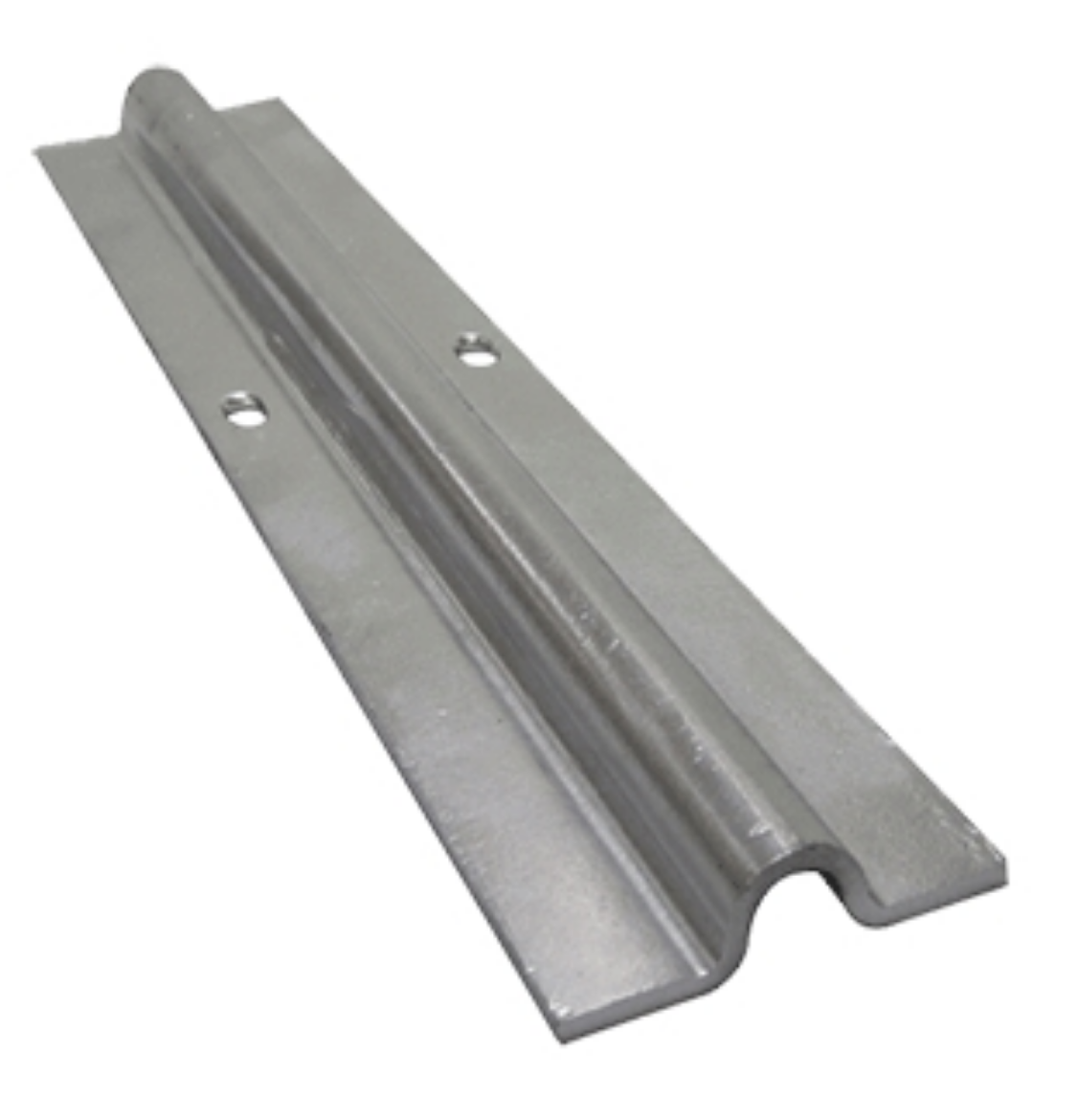

3m Bolt Down Sliding Gate Track (GTR010)
- L: 55mm
- L1: 300mm
- R: 13.5mm
- S: 3.5mm
- A: 11mm
- B: 6.6mm
- C: 40mm
- H: 15mm
Fasteners Required: 24
Fastener options:
The GTR010 can be mounted using Anchor Bolts or Drive Anchor Pins to secure it to the ground. Below is a list of fasteners that Richmond can supply for mounting your sliding gate track.
Anchor Bolts for mounting gate track
ABLM6ZPK8 M6 x 45mm Expanding Hex Head Anchor Bolt – 8 Pack
GTR174 M6.5 x 35mm long Anchor Bolt
GTR175 M6.5 x 55mm long Anchor Bolt
Drive Anchor Pins for mounting gate track
NIA380ZPK25 Pack of 25 Nail-In Mushroom Anchor Pin
GTR176 M6.5 x 32mm long Drive Anchor Pin
GTR177 M6.5 x 50mm long Drive Anchor Pin
Richmond can also supply a 6.5mm Drill Bit (GTR178) to drill the holes for the Drive Anchor Pins and Anchor Bolts to be placed in the ground.
Silver zinc plated sliding gate track to suit the track wheels above. There are many benefits to using bolt down track instead of the concrete in alternative. Besides the ease of installation on existing concrete driveways, it is a simple process to replace a section of the track if damage was to occur in future.
